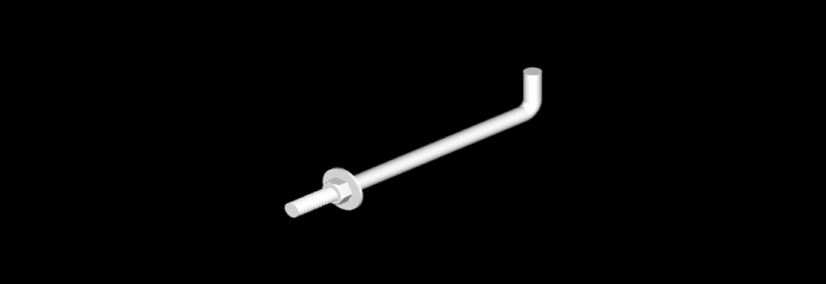

Anchor Bolt Plain & Galvanized

Home
All Products
Anchor Bolt Plain & Galvanized

Anchor Bolt Plain & Galvanized

size(inch)	plain pcs.wt.	wt./pcs. with nut & washer(kgs)	wt.bolt with nut(gm.)	pcs(bag)	bags(pallet)	pcs ctn	ctn.pallet
^3/8 x 6	0.077	0.094	85	100	50	100	100
^3/8 x 8	0.098	0.115	106	100	50	100	100
^3/8 x 10	0.120	0.137	128	100	50	100	100
^3/8 x 12	0.142	0.159	150	100	50	100	50
^3/8 x 14	0.164	0.181	172	100	50	100	50
^3/8 x 16	0.184	0.202	192	100	50	100	50
^3/8 x 18	0.207	0.224	215	100	50	100	50
^3/8 x 24	0.272	0.289	280	70	50	70	50
^3/8 x 30	0.337	0.354	345	60	50	60	50
^3/8 x 36	0.402	0.419	410	50	50	50	50
^3/8 x 48	0.583	0.600	591	50	50	50	50

Nut	Washer
8 Gram	9 Gram

size(inch)	plain pcs.wt.	wt./pcs. with nut & washer(kgs)	wt.bolt with nut(gm.)	pcs(bag)	bags(pallet)	pcs ctn	ctn.pallet
^1/2 x 6	0.139	0.164	155	100	50	50	100
^1/2 x 8	0.178	0.203	194	100	50	50	100
½ x 10	0.218	0.243	234	100	50	50	100
^1/2 x 12	0.257	0.282	273	70	50	50	50
^1/2 x 14	0.297	0.322	313	60	50	50	50
^1/2 x 16	0.336	0.361	352	50	50	50	50
^1/2 x 18	0.376	0.401	392	50	50	50	50
^1/2 x 24	0.495	0.520	511	40	50	50	50
^1/2 x 30	0.613	0.638	629	30	50	50	50
^1/2 x 36	0.732	0.764	748	25	50	50	50
^1/2 x 48	0.969	0.994	985	20	50	50	50

Nut	Washer
16 Gram	9 Gram

size (inch)	plain pcs wt.	wt. bolt with nut (kgs.)	wt./pcs. with nut & washer (kgs.)	pcs (bag)	bags (pallet)	pcs ctn.	ctn pallet
^5/8 x 6	0.225	0.256	0.275	50	50	25	100
^5/8 x 8	0.288	0.319	0.338	50	50	25	100
^5/8 x 10	0.350	0.381	0.400	50	50	25	100
^5/8 x 12	0.413	0.444	0.463	50	50	25	100
^5/8 x 14	0.475	0.506	0.525	40	50	25	50
^5/8 x 16	0.538	0.569	0.588	40	50	25	50
^5/8 x 18	0.600	0.631	0.650	30	50	25	50
^5/8 x 24	0.788	0.819	0.838	25	50	25	50
^5/8 x 30	0.975	1.006	1.025	20	50	20	50
^5/8 x 36	1.163	1.194	1.213	15	50	15	50
^5/8 x 48	1.538	1.569	1.588	10	50	10	50

Nut	Washer
31 Gram	19 Gram

size (inch)	plain pcs. wt.	wt. bolt with nut (kgs)	wt./ pcs. with nut & washer (kgs.)	pcs (bag)	bags (pallet)	pcs ctn	ctn pallet
^3/4 x 6	0.357	0.399	0.421	50	50	50	100
^3/4 x 8	0.442	0.484	0.506	40	50	40	100
^3/4 x 10	0.534	0.576	0.630	30	50	30	100
^3/4 x 12	0.625	0.667	0.689	25	50	25	50
^3/4 x 14	0.717	0.759	0.781	25	50	25	50
^3/4 x 16	0.808	0.850	0.872	25	50	25	50
^3/4 x 18	0.900	0.942	0.964	20	50	20	50
^3/4 x 24	1.174	1.216	1.238	15	50	15	50
^3/4 x 30	1.449	1.491	1.513	10	50	10	50
^3/4 x 36	1.724	1.766	1.788	10	50	10	50
^3/4 x 48	2.273	2.315	2.337	8	50	8	50

Nut	Washer
42 Gram	22 Gram

size (inch)	plain pcs. wt.	wt. bolt with nut (kgs)	wt./ pcs. with nut & washer (kgs)	pcs ctn	ctn pallet	pcs (bag)	bags (pallet)
^7/8 x 6	0.520	.600	0.667	25	50	25	50
^7/8 x 8	0.649	0729	0.796	25	50	25	50
^7/8 x 10	0.777	.857	0.924	25	50	25	50
^7/8 x 12	0.905	0.985	1.052	20	50	20	50
^7/8 x 14	1.034	1.114	1.182	15	50	15	50
^7/8 x 16	1.163	1.243	1.310	15	50	15	50
^7/8 x 18	1.291	1.371	1.438	15	50	15	50
^7/8 x 24	1.677	1.757	1.824	10	50	10	50
^7/8 x 30	2.062	2.142	2.209	10	50	10	50
^7/8 x 36	2.447	2.527	2.594	7	50	7	50
^7/8 x 48	3.218	3.298	3.365	5	50	5	50

Nut	Washer
80 Gram	67 Gram

size (inch)	plain pcs. wt.	wt. bolt with nut (kgs)	wt. / pcs. with nut & washer (kgs)	pcs ctn	ctn pallet	pcs (bag)	bags (pallet)
1 x 6	0.723	.823	0.905	20	50	40	25
1 x 8	0.892	.992	1.074	20	50	40	25
1 x 10	1.060	1.160	1.242	15	50	30	25
1 x 12	1.229	1.329	1.411	15	50	30	25
1 x 14	1.399	1.499	1.581	12	50	24	25
1 x 16	1.568	1.668	1.750	12	50	24	25
1 x 18	1.737	1.837	1.919	10	50	20	25
1 x 24	2.245	2.345	2.427	7	50	14	25
1 x 30	2.752	2.852	2.934	7	50	14	25
1 x 36	3.259	3.359	3.441	5	50	10	25
1" x 48	4.274	4.374	4.456	5	50	10	25

Nut	Washer
100 Gram	82 Gram

* Note : All specs can be customized as per client requirements.
